Hybrid Edge Architecture: GPU Core + Global CPU Layer

Scaling an application that relies heavily on compute is expensive and hard to staff if you follow traditional cloud rules. If you try to build your AI infrastructure by simply throwing expensive chips at every geographic region, you'll likely burn budget on idle VRAM before you hit production traffic.

Designing a hybrid architecture is often the most economical pattern at scale, balancing the physical realities of hardware with the digital demand for speed. You have to be strategic about where the thinking happens and where the routing happens.

The Reality of GPU Scarcity

H100s cost $30K+ each, and you can't buy enough of them. When you build artificial intelligence infrastructure, you're balancing two constraints: latency and cost.

According to research on GPU inefficiency in AI workloads, production clusters often operate at well below 50% utilization even under load. This inefficiency stems from the fact that many developers feel they have only two choices. They can centralize everything in one giant data center, which makes the application feel sluggish for anyone living far away. Or they can try to distribute their GPU infrastructure globally, often leading to massive bills for idle hardware. If you have a cluster in London and it's 3 AM there, those expensive GPUs are sitting idle while you still pay for rack space and power.

The hybrid model addresses this by splitting the workload. A thin, global layer of affordable CPU power handles the edge work, while a concentrated core of high-performance GPUs handles the heavy math.

The Problem with the CDN Mentality

Content Delivery Networks changed the internet by bringing images and videos closer to users. Many engineers try to apply this same logic to AI infrastructure, assuming the best solution is to put the entire model at the edge.

1. Model Complexity. While some specialized hardware (like the NVIDIA H100 NVL) is designed for models up to 70 billion parameters, replicating these high-end nodes at every global edge point is prohibitively expensive.
2. Cold Starts. Large models take time to load into memory. For example, if a specific edge node hasn't been used for several minutes, a user might experience a significant delay — sometimes dozens of seconds — while the system prepares the model.
3. VRAM Waste. To keep a model ready for instant response, you must keep the video memory occupied. Doing that across fifty global locations is a waste of resources that could be used for actual processing.

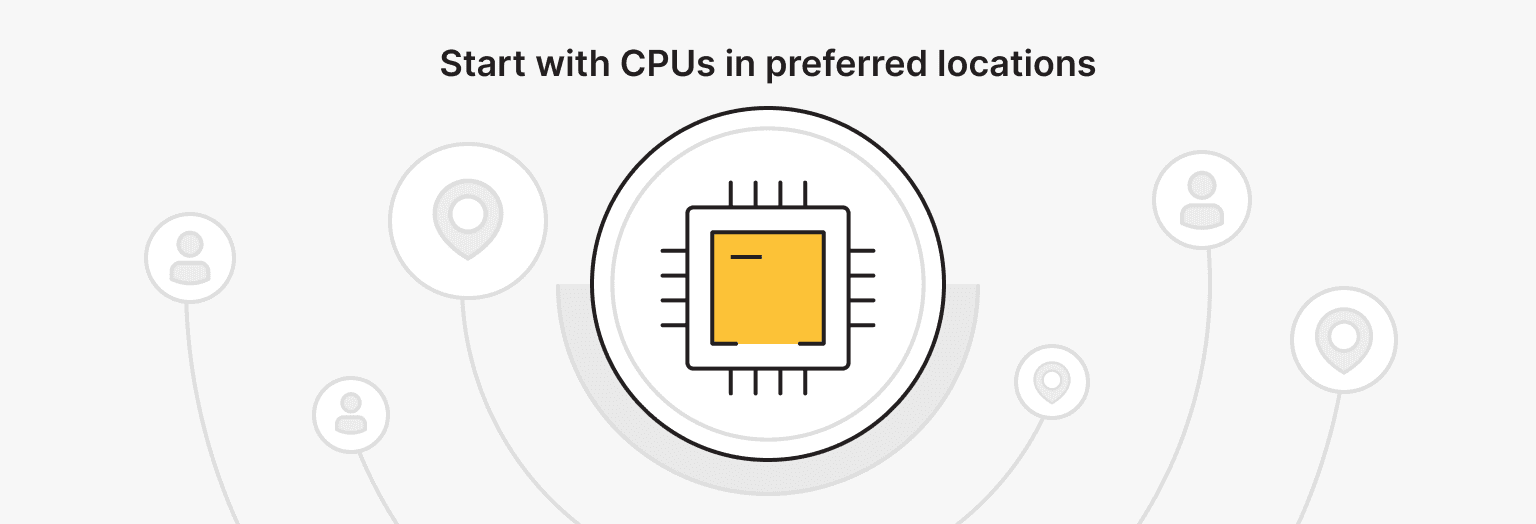

Part 1: The Global CPU Layer

The first part of a successful hybrid architecture is the CPU-based edge. It's affordable, available in almost every region, and fast at handling basic logic. In this setup, the CPU layer is not just a pass-through; it's a sophisticated filter.

What the CPU Edge Handles:

• Request Routing. It decides which GPU cluster is the best fit based on the current workload, rather than just distance.
• Authentication and Rate Limiting. Requests without a valid API key get rejected here, before they consume GPU cycles. Block the bad actors at the edge.
• Caching. If hundreds of people ask the same question, the CPU layer can serve the cached answer without ever involving the GPUs.
• Prompt Preprocessing. Cleaning up text, stripping out junk, and formatting data should happen on the CPU.
• Token Streaming. The edge layer can manage the WebSocket connection to the user, providing a smooth experience even if the core has a slight delay.

By offloading these tasks, you ensure that your artificial intelligence infrastructure is only doing the work that strictly requires a GPU.

Part 2: The GPU Core

Instead of fifty small sites, you have a few massive cores. These cores are packed with high-density GPU servers that are optimized for maximum throughput.

Because these cores are centralized, you can run them at much higher utilization rates. When usage drops in New York, the same core can start processing requests from London or Tokyo. A single core serving multiple time zones stays busy around the clock instead of idling during off-peak hours.

Managing the Core Load

The core focuses on the queue. By using the global CPU layer as a buffer, the core can focus on batch processing. Batching is a primary factor in making AI infrastructure sustainable. If you process one request at a time, you're not using the parallel processing power of the hardware. As noted in NVIDIA's AI Grid research, distributed architectures that maximize GPU utilization can reduce the cost per token by over 50% compared to unoptimized centralized clusters.

Technical Implementation: The Intelligent Router

You don't need a complex proprietary system to start building a hybrid architecture. You can use a combination of Nginx, Redis, and a Python-based FastAPI service to act as your traffic controller.

Below is a conceptual example of how the edge layer might handle an incoming request before it touches the GPU infrastructure:

import httpx
from fastapi import FastAPI, Request, HTTPException

app = FastAPI()

# A list of our global GPU cores
GPU_CORES = {
    "us_east": "https://core_ny.example.com/v1/inference",
    "eu_central": "https://core_fra.example.com/v1/inference",
    "asia_east": "https://core_tokyo.example.com/v1/inference"
}

@app.post("/v1/chat/completions")
async def handle_request(request: Request):
    # 1. Validation (CPU Edge Task)
    user_data = await request.json()
    if not user_data.get("prompt"):
        raise HTTPException(status_code=400, detail="No prompt provided")

    # 2. Basic Caching Check (CPU Edge Task)
    # This avoids hitting the GPU for repeated queries
    cache_key = generate_hash(user_data["prompt"])
    if cache_exists(cache_key):
        return get_cached_response(cache_key)

    # 3. Intelligent Routing (CPU Edge Task)
    target_core = select_best_core(GPU_CORES)

    # 4. Forwarding to the GPU Core
    async with httpx.AsyncClient() as client:
        response = await client.post(target_core, json=user_data, timeout=30.0)

    return response.json()

The edge is no longer just a gateway; it's a functional part of the system.

The Economics of Hybrid Architecture

The following table provides an illustrative comparison of how different models impact your bottom line.

Note: These figures are estimates based on typical utilization rates and cloud billing methods. Specific costs depend on the model size, batching, and hardware selection.

Teams that separate routing from inference usually scale more predictably. When you use a high-performance VPS for your edge nodes, your overhead is minimal compared to the cost of a dedicated cluster.

The economics above aren't theoretical if you use the right building blocks for your edge layer.

An edge node on a Medium plan — 3 vCPU, 4 GB RAM, NVMe, $21.24/mo — handles roughly 2,000 req/s of routing, caching, and auth logic running behind Nginx + FastAPI.

Scale that to ten regions and your entire global edge layer costs ~$210/mo under one billing account. Compare that to the price of a single H100 node ($2–3/hr on major clouds).

For GPU cores, dedicated GPU servers handle the inference side. Pair them with the global VPS layer, and you get the hybrid pattern described in this article without stitching together three different providers.

Solving the Latency Myth

Critics of the hybrid model often point out that the round trip from the edge to the core adds 100 milliseconds of latency. In AI infrastructure, the Time to First Token is dominated by the model's inference time, not network travel time.

If your model takes 2 seconds to generate a response, a 100-millisecond network delay is only 5% of the total time. More importantly, because the hybrid architecture enables better batching and high-performance hardware at the core, inference itself is often significantly faster than on a smaller GPU at the edge. You actually end up saving time by traveling farther to a faster machine.

Why We Use Smart Preprocessing

The global CPU layer can perform vector embeddings or simple text summarization. It extracts the relevant chunks of text and sends only those to the GPU infrastructure. This reduces context window usage, lowering your costs and speeding up responses.

We've discussed the importance of resource management in our article on server load balancing, and the same principles apply here. You want to keep the most expensive parts of your system as idle as possible until they are absolutely needed.

Building for Resilience

Hardware fails. If you rely on a single local GPU node and it goes offline, your users in that region will be unable to access the service. In a hybrid architecture, the CPU edge is aware of the health of all cores. If the primary GPU core in Northern Virginia has a power failure, the edge nodes can instantly reroute traffic to a core in Iceland or Germany.

The user sees higher latency, but requests still complete. This level of redundancy is much harder to achieve when your compute is tightly coupled with entry points.

Migrating to Hybrid: You Don't Need to Rebuild

1. Measure. What percentage of requests actually hit the GPU vs. could be cached or rejected at auth? Most teams find 40–60% of traffic never needs inference hardware.
2. Deploy one edge node. Pick your highest-latency user region. Spin up a VPS, run Nginx plus a routing service, and point a subset of traffic through it. You're adding a filter, not moving the workload.
3. Add caching and auth at the edge. Use Redis for response caching and API key validation before anything touches the GPU. Every cached response is a GPU cycle you didn't pay for.
4. Expand. The config is identical across regions; only the location changes. The same deploy works whether the node is in Chile or the Czech Republic.
5. Add GPU core failover last. Once the edge layer is stable and you have traffic data, evaluate whether a second GPU core makes sense, or whether a single core with global edge routing is enough.

Final Engineering Insights

Before you spec hardware, answer these five questions.

• What percentage of your requests are cache-eligible? If more than 30% of inbound prompts are near-duplicates (common in customer support bots, FAQ agents, and product copilots), your CPU edge layer pays for itself in GPU hours saved. Measure this before you build anything.
• Where are your users, and where is your GPU provider? List your top five user regions by request volume. Measure the round-trip time from each region to your GPU cluster. If the worst case is under 150 ms, a single core with global edge nodes works fine. If it's 300 ms+, you need a second core or a different provider.
• What's your cold-start tolerance? If your application can't handle a 10–30 second model load time on first request, you need persistent GPU allocation — which changes the cost model. The hybrid approach assumes warm cores with batched queues, not on-demand spin-up.
• Can your workload batch? Batching is the single biggest lever for GPU cost reduction. If your requests are real-time and latency-critical (live video processing, real-time trading signals), the edge-core split still helps with routing, but the savings from batching shrink.
• Do you have the ops capacity to monitor two layers? A hybrid architecture means monitoring edge health, core health, and the link between them. If your team doesn't have alerting for queue depth, cache hit rate, and core failover, build that before you split the architecture.

If you want to go deeper on choosing the right CPU for your edge layer, our server processor comparison breaks down the tradeoffs between Intel and AMD for exactly this type of workload. And if you're ready to test the pattern, grab a VPS in the region you need — it takes about 15 minutes to have an edge node running.
